BCE-330 Series (SD-135)

Image of BCE-330.jpg
3" Face Mullions, 3", 4 7/8", 5 1/2" Depths, 3", 4", 5" & 7" Tubes

BCE-330 Series (SD-135)

  • This system is designed to be assembled with 1/4-20 thread screws to apply pressure plate. Use #10 self-tapping screws to secure shear clips.
  • Thermally Broken : N/A
  • Comparable Competitive System : N/A

download system pdf

SELECT PRODUCT TO REQUEST QUOTE

Minimum order 1000lbs each per cut length - minimum length 8 feet, maximum 36 feet
Product catalog best viewed on desktop.

Click to enlarge Part # Weight per ft. Perimeter Length in Ft. LBS Add to RFQ

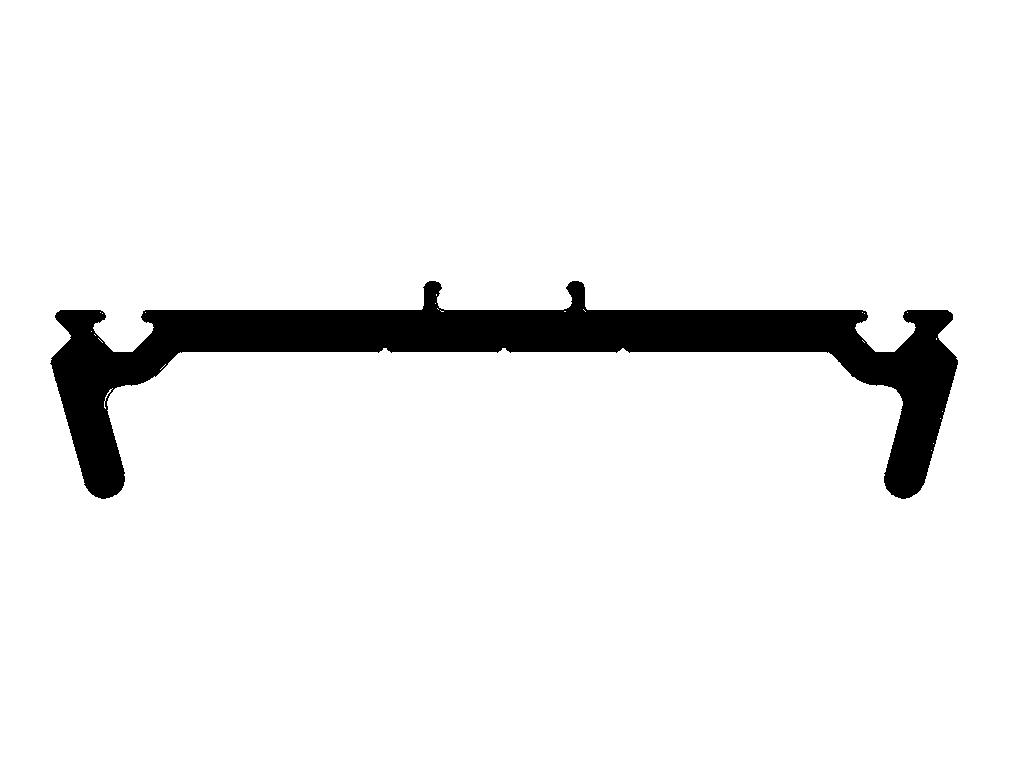

Image of BCE 330
BCE-330
0.582 8.575

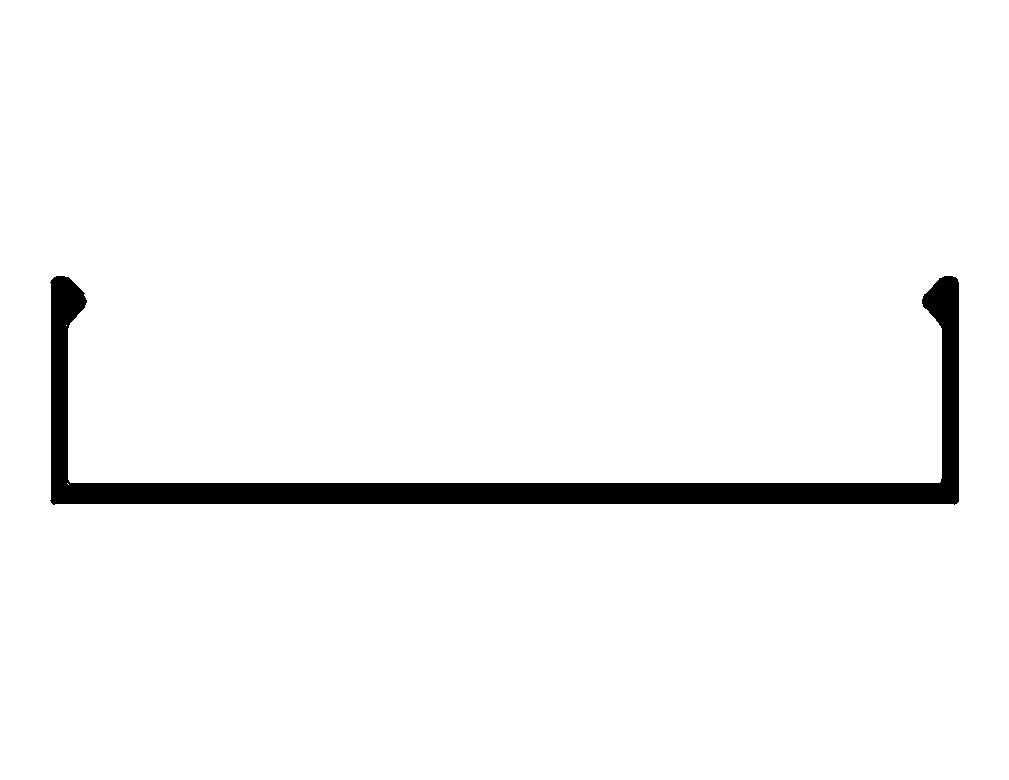

Image of BCE 331
BCE-331
0.32 8.94

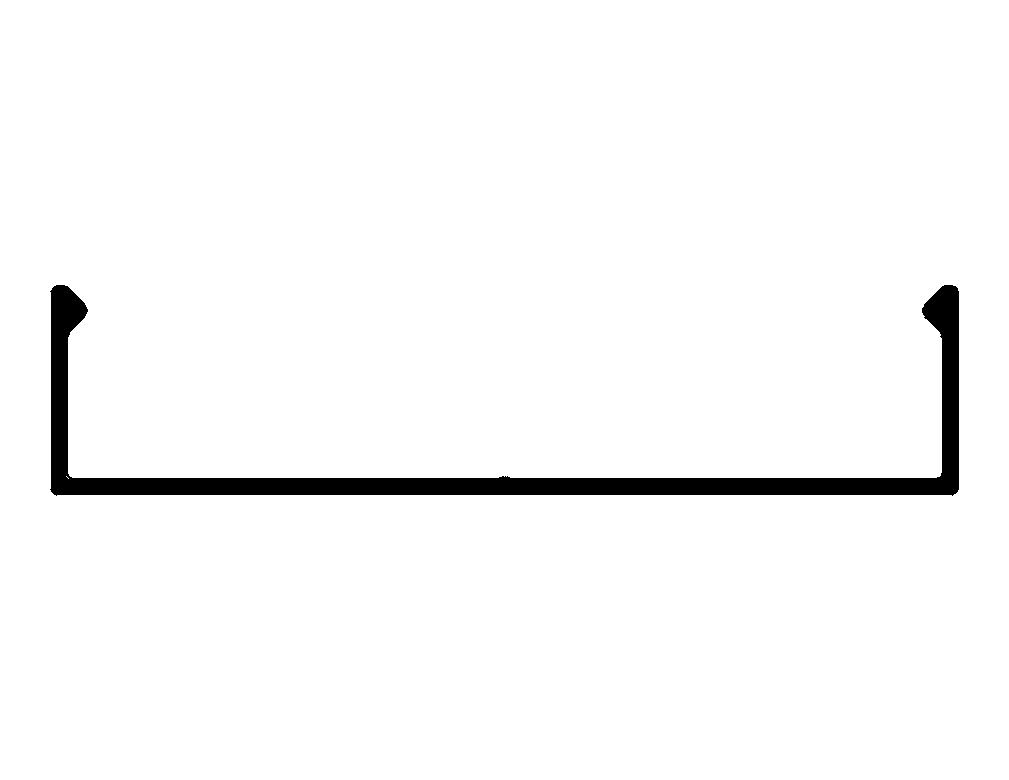

Image of BCE 332
BCE-332
0.271 8.715

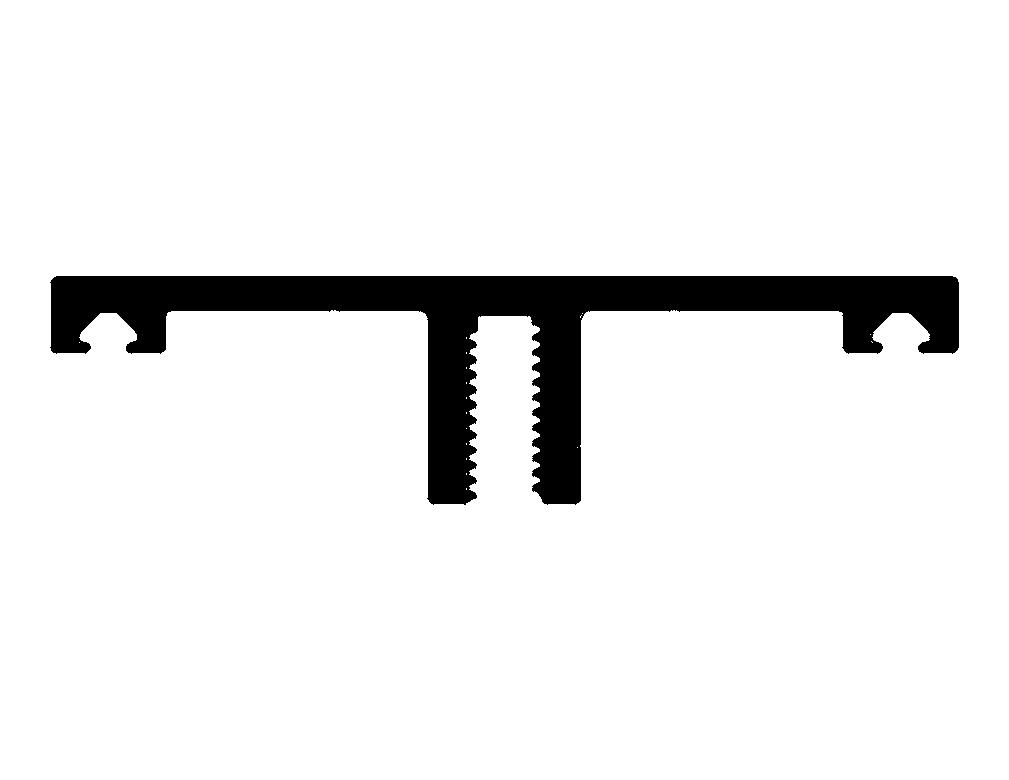

Image of BCE 333
BCE-333
0.697 10.518

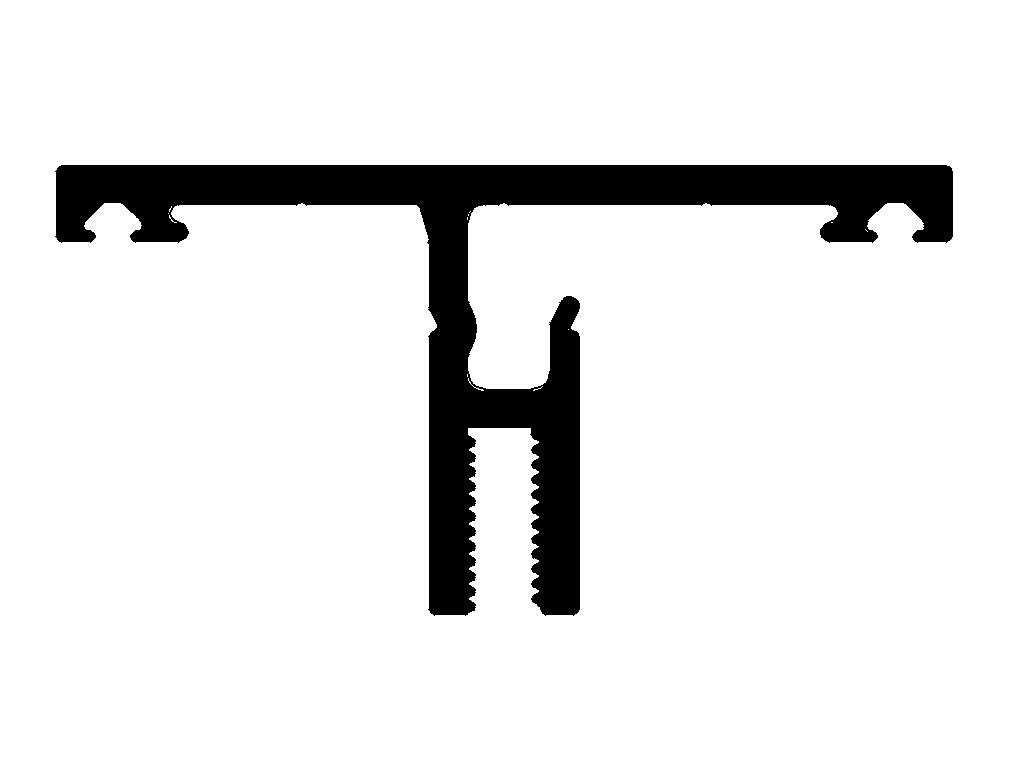

Image of BCE 334
BCE-334
0.948 13.472

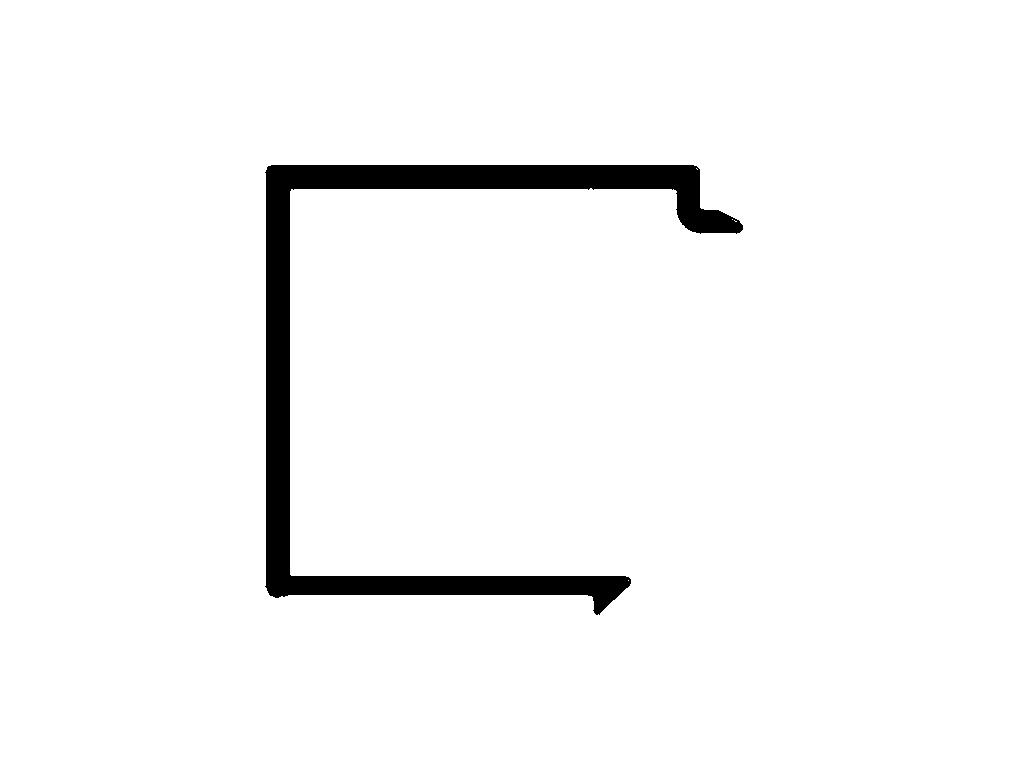

Image of BCE 335
BCE-335
0.258 7.403

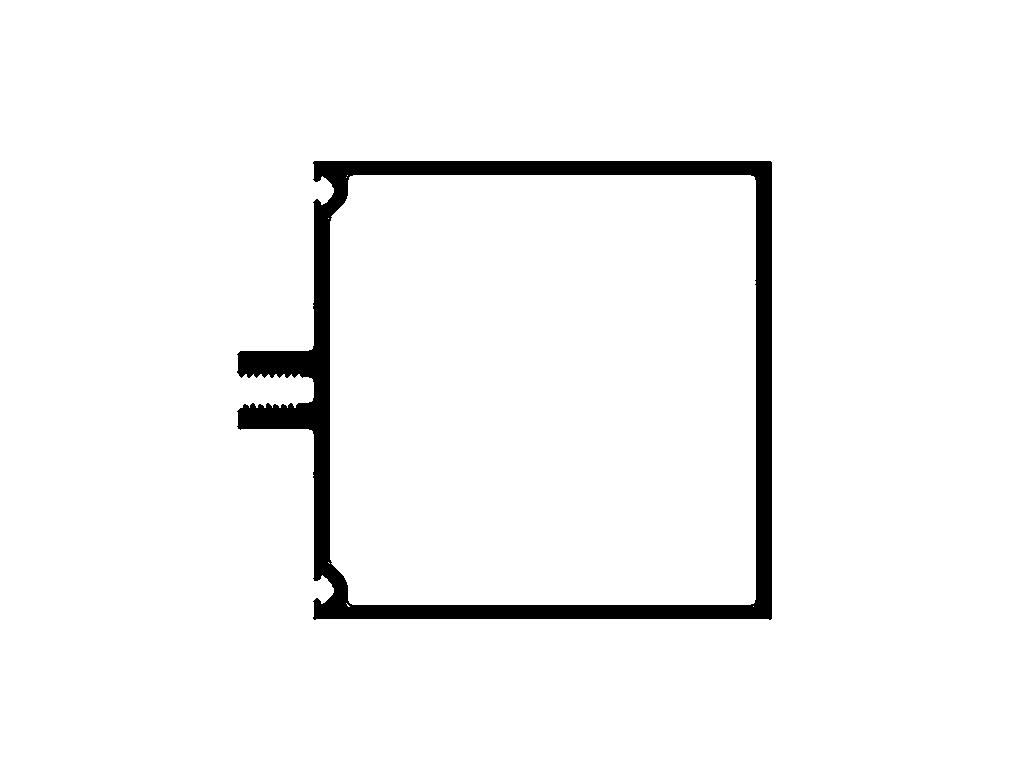

Image of BCE 336
BCE-336
1.399 14.939

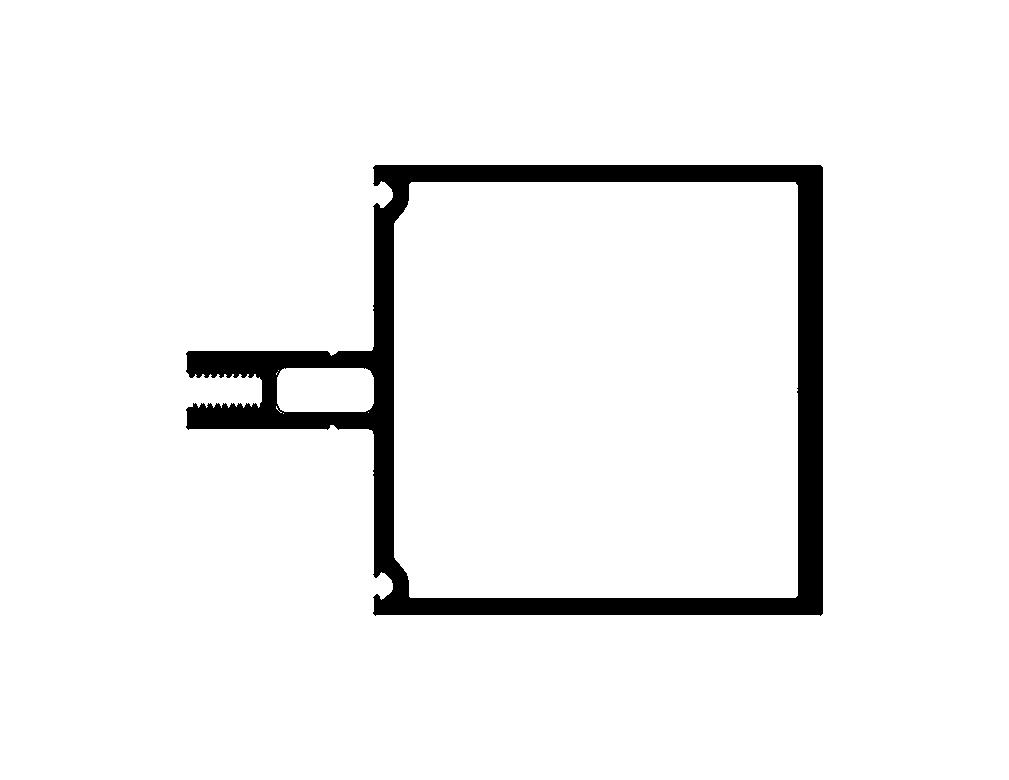

Image of BCE 337
BCE-337
2.059 16.608

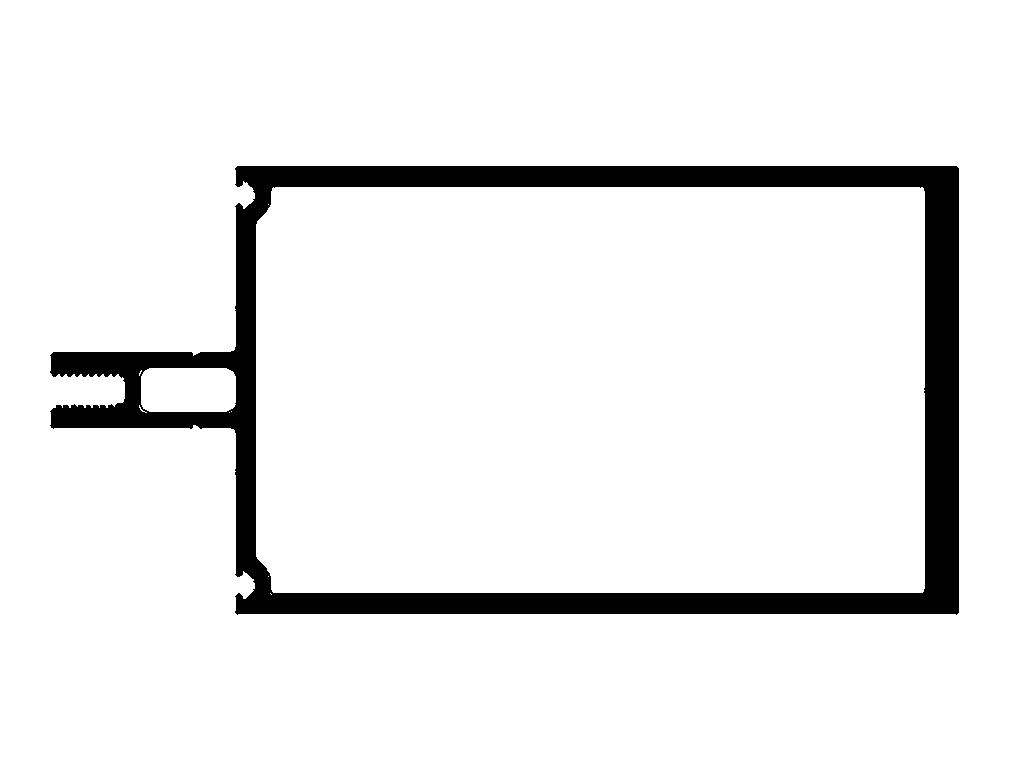

Image of BCE 340
BCE-340
2.988 20.342

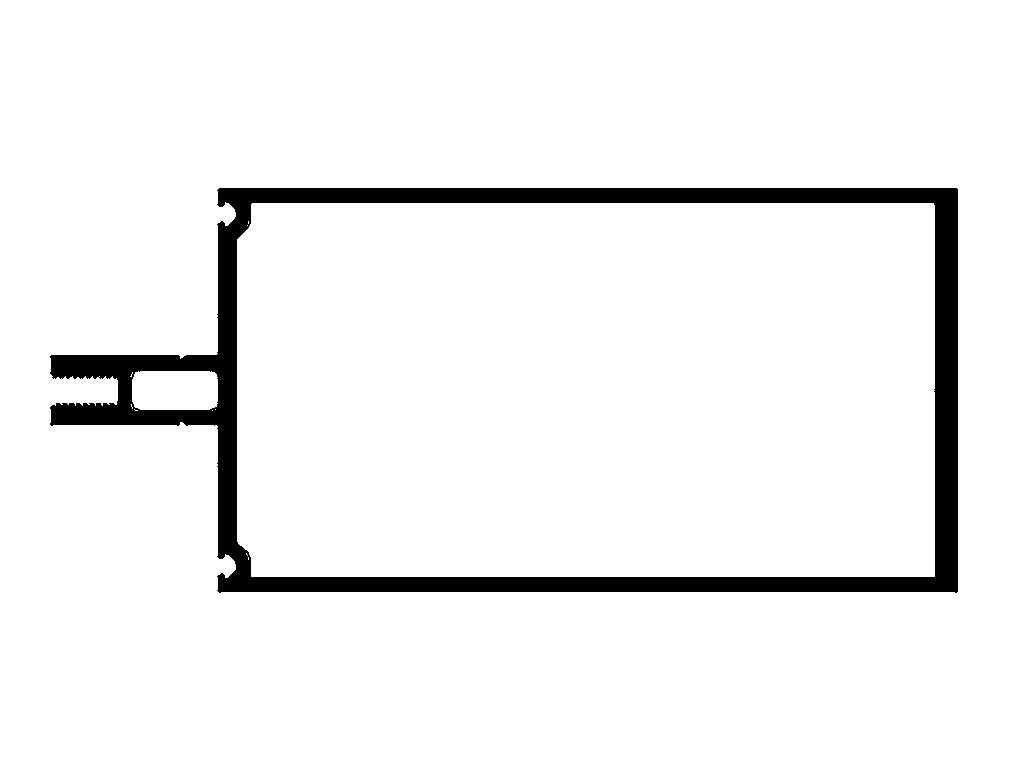

Image of BCE 357
BCE-357
2.659 21.605
Image of A 1496
A-1496
1.094 12
Image of A 7033
A-7033
1.726 11.988

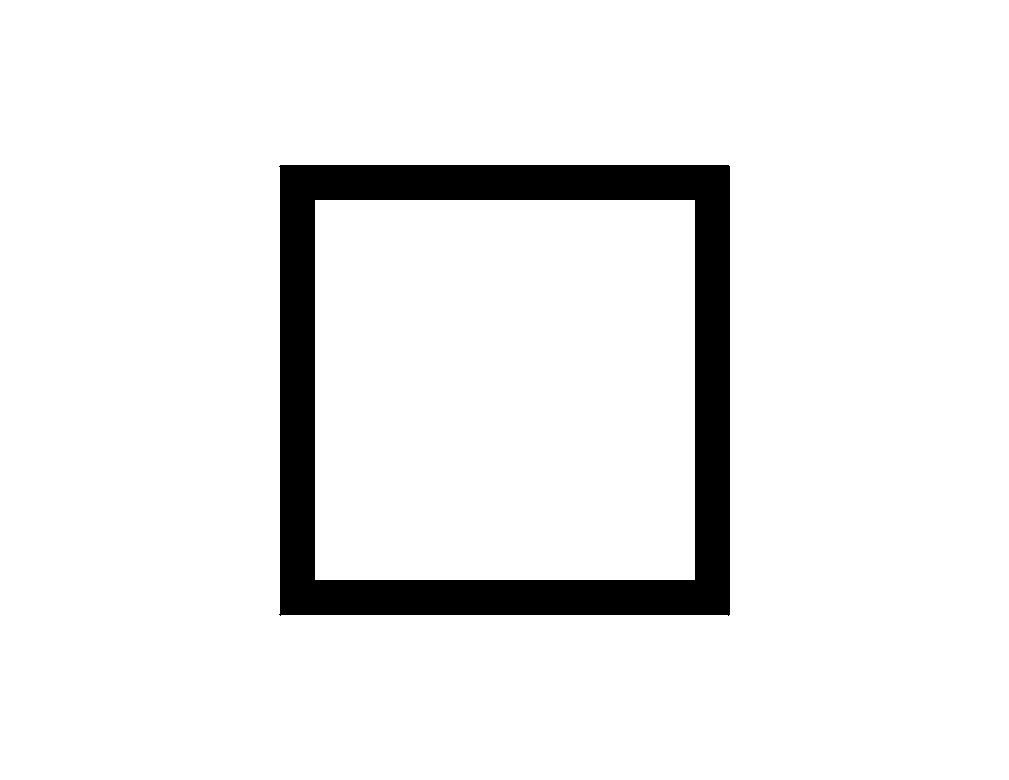

Image of A 7036
A-7036
2.923 12

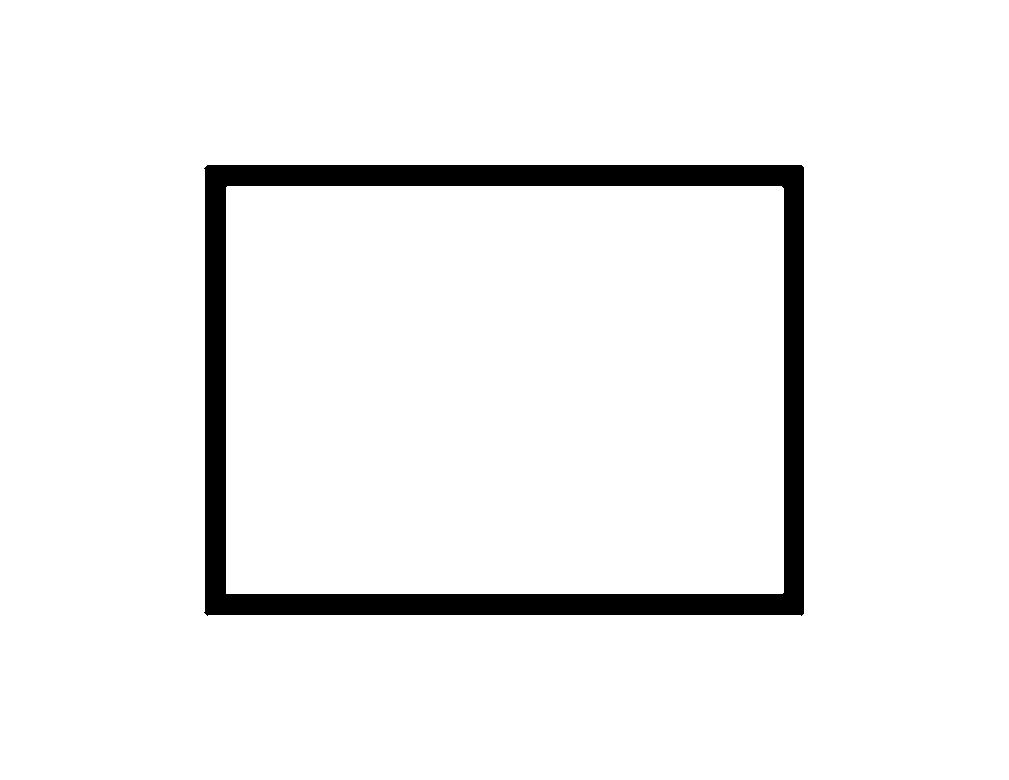

Image of A 1415
A-1415
2.026 13.983

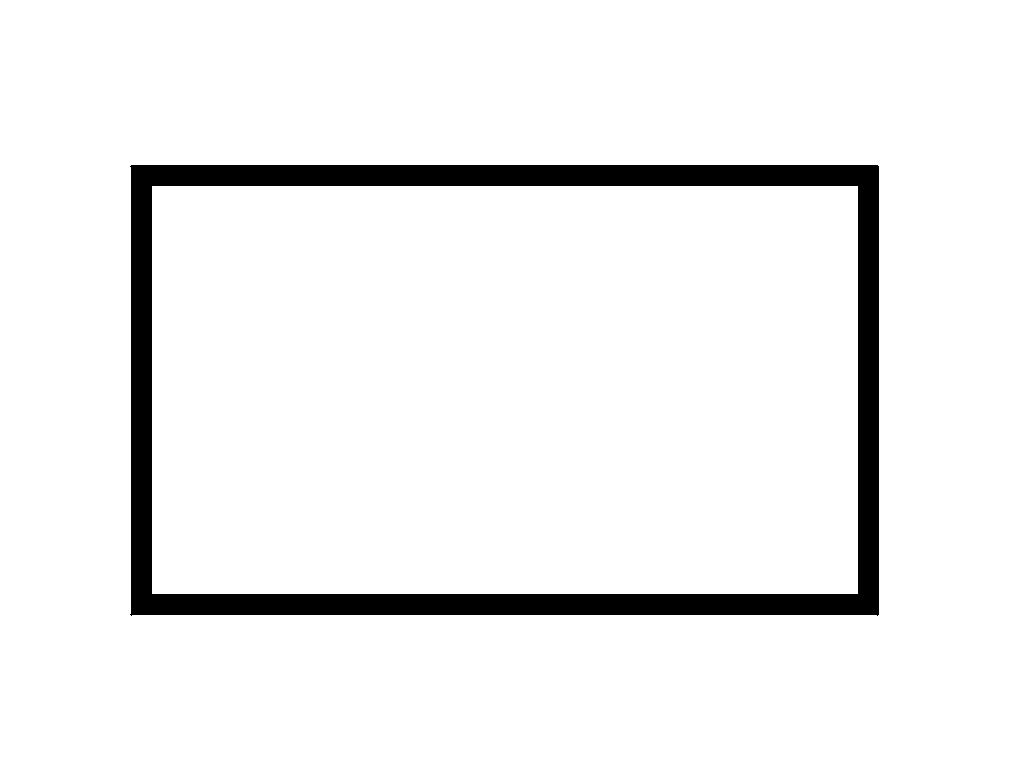

Image of A 7053
A-7053
2.326 16

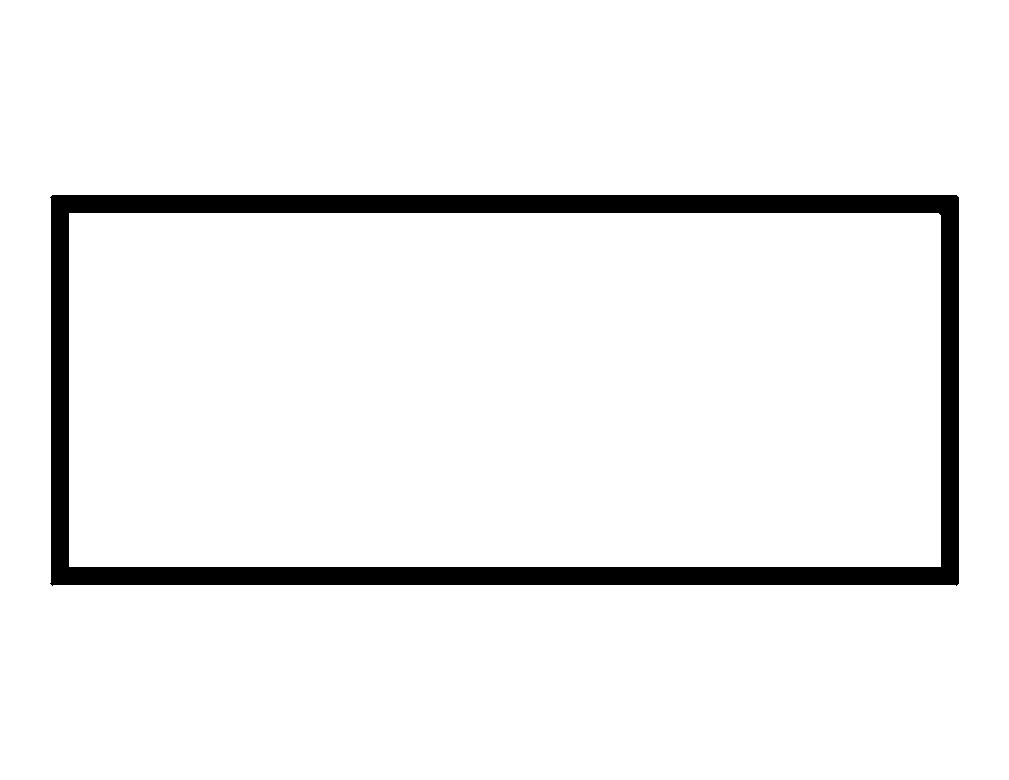

Image of A 7003
A-7003
2.926 19.988
Image of BCE 5
BCE-5
0.109 2.712

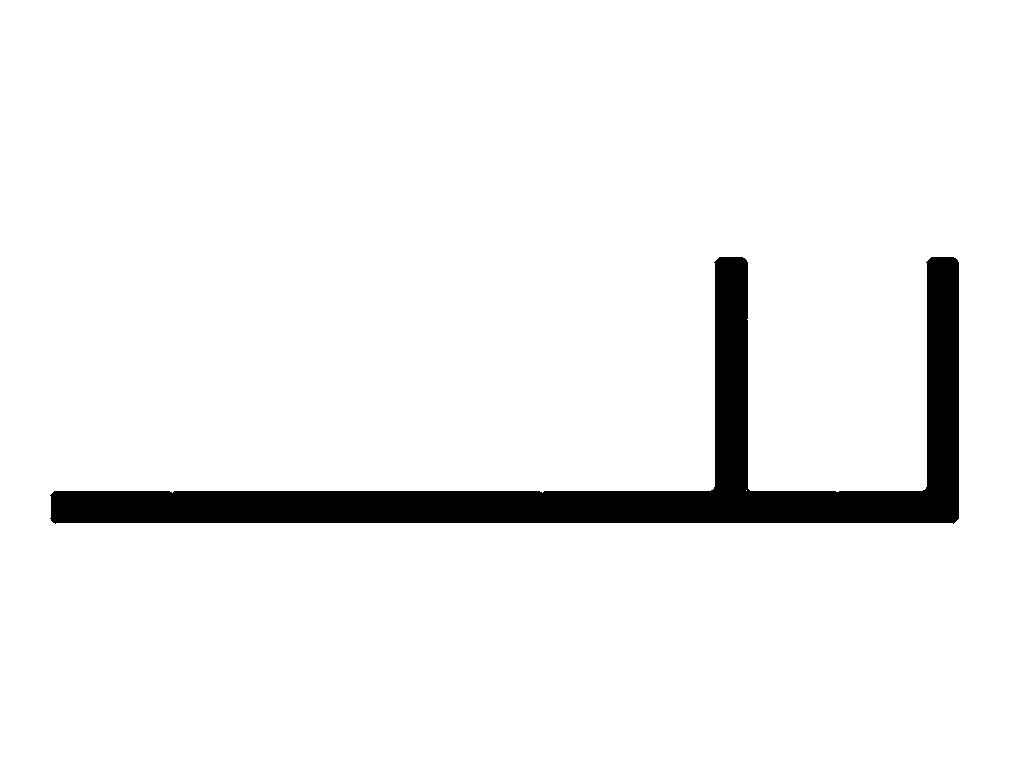

Image of BCE 212
BCE-212
0.852 11.579

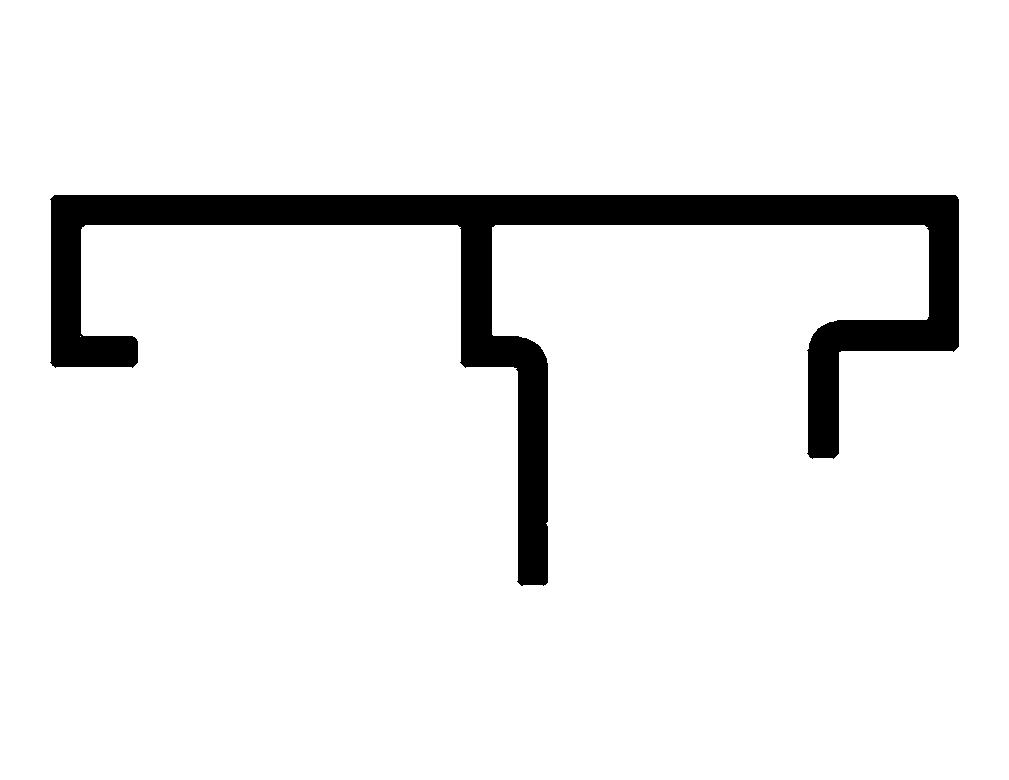

Image of BCE 267
BCE-267
1.234 16.566

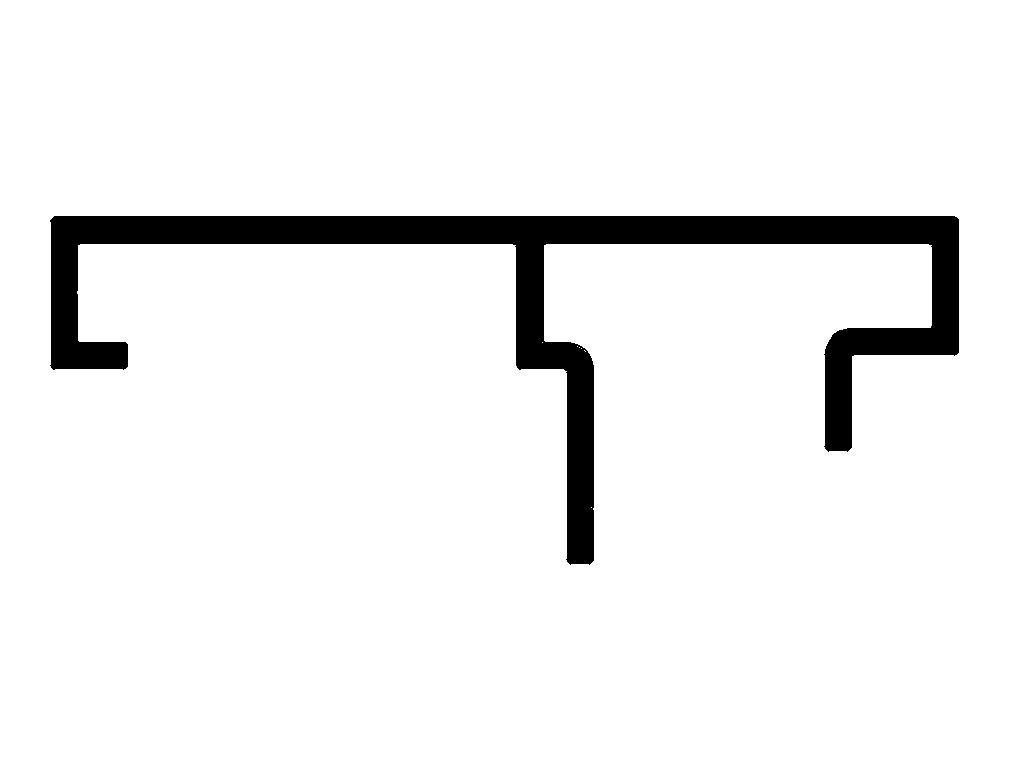

Image of BCE 2567
BCE-2567
1.308 17.57

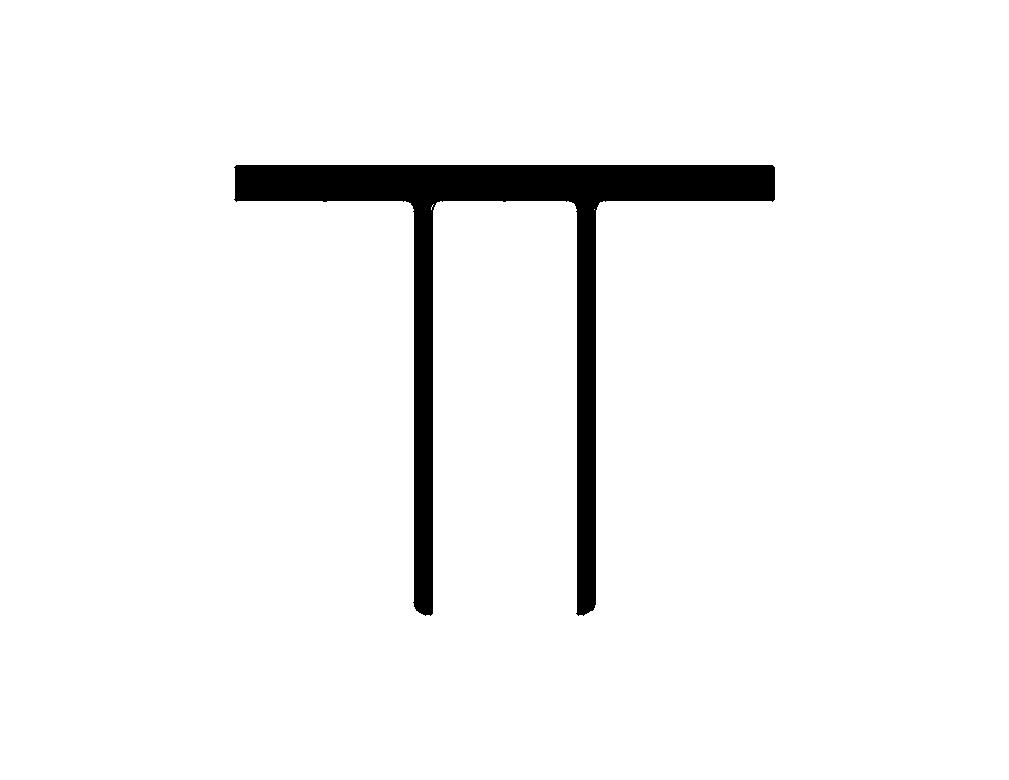

Image of BCE 2550
BCE-2550
4.794 30.915

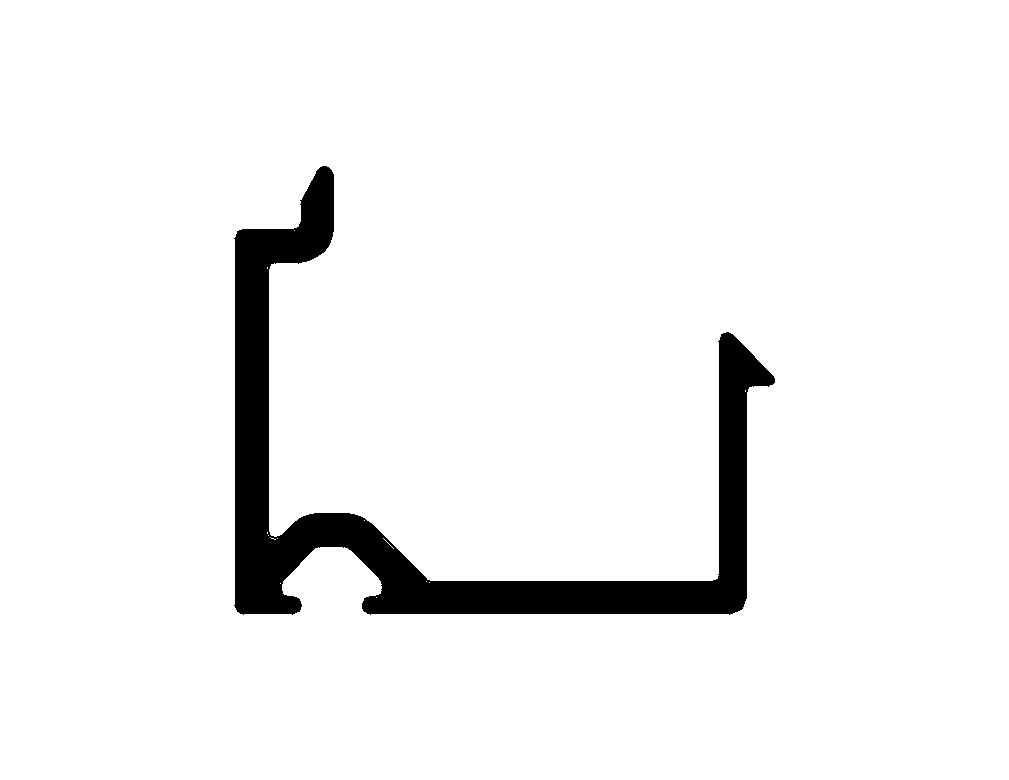

Image of BCE 258
BCE-258
0.205 5.681
