Extruded aluminum tees and zees

Miscellaneous Tees

American Standard Zees

Miscellaneous Zees

Bonnell Aluminum carries a large inventory of extrusion tooling used in the production of standard aluminum profiles designed to Aluminum Association and American Standard specifications.  Standard aluminum extrusions are available in mill order quantity only.

All requests for standard aluminum extrusions are made to order; when ordering, please specify alloy, temper, length, quantity, surface finish, end use and any special instructions regarding dimensional, length, or shipping tolerances, custom packaging, identification or certification. Please note - Standard shapes are usually sold unfinished.

Inquiries for standard shapes to be painted or anodized must be approved by Manufacturing prior to order placement.

Please contact us if you have any questions. You can make use of our on-line chat service, click the button at the top to request information via our online form, or call a representative using numbers provided on the contact page.

Extruding aluminum is our business and we look forward to meeting your aluminum extrusion needs.

Aluminum tee profile cross-section with dimension key

Miscellaneous Tees


Put your mouse over the Part # to view the corresponding Die name(s)

Location: C = Carthage, TN extrusion plant
Location: N = Newnan, GA extrusion plant

A
B
T
T1
R
lb/ft
Location
Part #
0.750"
0.750"
0.125"
0.125"
.
0.206
N
133002
1.000"
1.000"
0.125"
0.125"
.
0.268
N
133008
1.750"
2.500"
0.125"
0.125"
.
0.618
C
133026
2.000"
0.750"
0.125"
0.125"
.
0.390
C
133028
2.000"
1.250"
0.250"
0.250"
.
0.900
N
133030
2.000"
2.000"
0.250"
0.250"
.
1.124
CN
133035
2.000"
2.750"
0.125"
0.150"
0.250"
0.804
C
133040
2.250"
3.750"
0.250"
0.250"
.
1.726
N
133046
3.000"
2.000"
0.150"
0.150"
.
0.872
N
133054
3.188"
2.000"
0.188"
0.188"
.
1.128
C
133056
4.000"
2.000"
0.187"
0.187"
.
1.310
C
133060

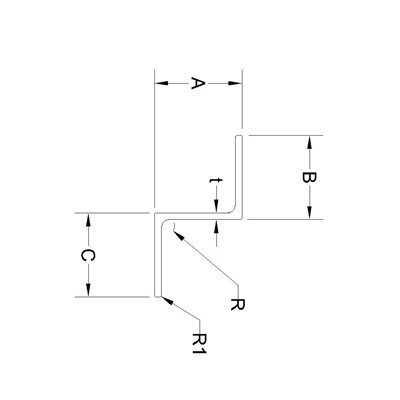

Amercian Standard aluminum zee profile cross-section with dimension key

American Standard Zees


Put your mouse over the Part # to view the corresponding Die name(s)

Location: C = Carthage, TN extrusion plant
Location: N = Newnan, GA extrusion plant

A
B
C
t
R
R1
lb/ft
Location
Part #
4.000"
3.062"
3.062"
0.250"
0.312"
0.250"
2.848
N
141003
Miscellaneous zee profile cross-section with dimension key

Miscellaneous Zees


Put your mouse over the Part # to view the corresponding Die name(s)

Location: C = Carthage, TN extrusion plant
Location: N = Newnan, GA extrusion plant

A
B
C
t
R
R1
lb/ft
Location
Part #
0.500"
0.500"
0.500"
0.062"
0.062"
0.062"
0.102
N
142001
1.000"
1.125"
1.120"
0.125"
0.125"
0.125"
0.449
N
142008
1.094"
1.500"
0.938"
0.094"
0.094"
0.094"
0.377
N
142009
2.250"
1.250"
1.250"
0.250"
0.250"
0.250"
1.274
N
142016
